Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

ภาพใหญ่ : Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

รายละเอียดสินค้า:

Place of Origin:	Ruian
ชื่อแบรนด์:	shelly
ได้รับการรับรอง:	CE
Model Number:	YL-600

การชำระเงิน:

Minimum Order Quantity:	1set
Packaging Details:	Export wooden case
Delivery Time:	30 working days

ติดต่อ

รายละเอียดสินค้า

Width:	600-1000mm	Speed:	10-200 pcs/minute
Material:	PE	Capacity:	controlled by computer
Color:	as painting	Weight:	1800kgs

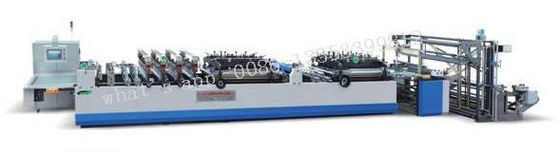

Laminated Pouch Plastic Bag Making Machine For High Speed PLC Controlled

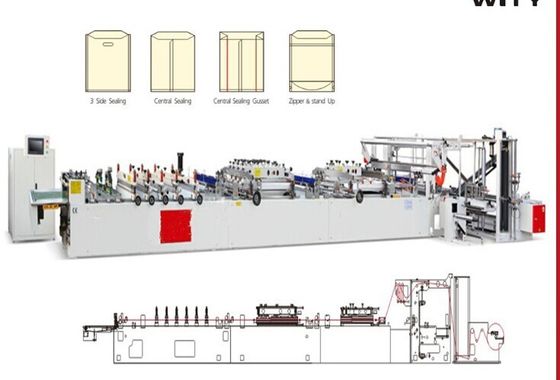

HEAVY DUTY MULTI-FUNCTION LAMINATED BAG MAKING MACHINE+SINGLE FILM BOTTOM FOLDED

New design for producing America laminated bag (sigle sheet folded 3 side sealing bag stand up pouchand zipper bag),also can produce PET food bag which is popular from America.

Features:

1) Folding,punching, bottom gusset and sealing automatic design.
2) Newly design feeding structure, hig speed feeding no shake.
3) Special design bottom gusset device, easy to operate.
4) Double layers unwinding design, suitable for multi-function laminated bags.
5) Newly design zipper and stand up device

Specifications:

Model	400	500	600
Width of unwinding	800mm	1000mm	1200mm
Bag making length	70-380mm*N(N≤6)	70-380mm*N(N≤6)	70-380mm*N(N≤6)
Bag making width	70-380mm	70-480mm	70-580mm
Speed	40-150pcs/min
Set film dragging speed	35m/min	35m/min	30m/min
Total power	38kw	43kw	48kw
Weight	3900kg	4100kg	4400kg
Dimension LXWXH	1230017501800mm	1230019501900mm	1230020502000mm

Main device list:

Components Name	Name of accessory	Type	Quantity	Provider
Traction Parts	Feeding servo motor	1.5kw	1 pcs	Yaskawa -Japan
		1KW	1 pcs
		2KW	1 PCS
	Pneumatic Components		several	SHANKO Taiwan
Main transmission	reducer	1:10	1 set	ZHIBAO- Taiwan
	inverter	2.2 KW	1 set	Yaskawa-JAPAN
Feeding device	inverter	0.75KW	1 set	Yaskawa-JAPAN
Controlled device	PLC		1 set	Panasonic-Japan
	display	10.4 inch	1 set	Weinview-Japan
	Photocell		2pcs	KONTEC-TAIWAN
	Solid State Relay		22 pcs	FOTEK from Taiwan
	Magnetic powder brakes	2.5 kg, 0.25kg	2 sets	Ruian China
	EPC	Double photoelectric	1 set	China
	Photocell		1 pcs	Kontec-Twian
